BH 2019 New type advanced durable concrete batching plant for sale
Description:
Concrete batching plant is also called concrete mixing plant, concrete mixing station. It includes twin-shaft compulsory concrete mixer, concrete batching machine, cement silo and screw conveyor, belt conveyor or skip hopper, and control room. It can produce a variety of concretes, such as plastic, dry hard concrete with high production efficiency, short mixing time, and easy operation. concrete batching plant is widely used in large and medium-sized building construction, road and bridge, and precast plants. It is the ideal plant for the production of commercial concrete.
Parameter:
| Model | Capacity
(m3 /h ) | Standard DischargeHeight(m) | Mixer Model | Batching Machine Model | Mix Recycle Time(s) | Total Power (KW) |
| HZS25 | 25 | 3.8 | JS500 | PLD1200 | 72 | 52 |
| HZS35 | 35 | 3.8 | JS750 | PLD1200 | 72 | 75 |
| HZS50 | 50 | 4.2 | JS1000A | PLD1600 | 60 | 105 |
| HZS60 | 60 | 4 | JS1000 | PLD1600 | 60 | 115 |
| HZS75 | 75 | 4.2 | JS1500A | PLD2400 | 60 | 132 |
| HZS90 | 90 | 4 | JS1500 | PLD2400 | 60 | 195 |
| HZS120 | 120 | 4.2 | JS2000 | PLD3200 | 60 | 220 |
| HZS180 | 180 | 4.2 | JS3000 | PLD4800 | 60 | 275 |
Function:
The concrete mixing station is a combined device for concentrated mixing of concrete, also known as concrete prefabrication. Because of its high degree of mechanization and automation, it has high productivity, and can guarantee the quality of concrete and save cement. It is often used in large and medium-sized water conservancy, electric power, bridges and other projects with large amount of concrete engineering, long construction period and concentrated construction sites. With the development of municipal construction, the mixing station using concentrated mixing and providing commercial concrete has great advantages, so it has been rapidly developed, and it has created conditions for the promotion of concrete pumping construction and the joint operation of mixing, conveying and pouring machinery.
Details:
Specifications:
1. Stability and Durability: apply the most advanced technologies around the world .
2. Control System:with self-locking ,interlocking features to ensure accurate operation system.
3. Spiral mixer with twin-shaft compulsory mixer, it mix evenly and strongly ,fast and efficiency .
4. Weiging system is about the whole electronic measurement with automatic compensation.
5. The whole machine adopts industrial computer control.
Application:
Bridge site,Highway,Railway,Hydropower site,Tunnel,Airport,Prefabricated plant,General construction site,Large and Medium sized business concrete mixing station.
Care and maintenance:
It is necessary to periodically perform multiple vibration tests on the vibrator in the dust removal device of the cement silo, and to clean the impurities on the filter rod, so as to effectively ensure unobstructed gas output; if the rotating conveyor is long If it is not used, it is necessary to vent the cement inside; it is necessary to carry out regular cleaning work on the inner wall of the feed port of the machine and the discharge port of the rotary conveyor, so that the phenomenon of blockage can be effectively prevented.

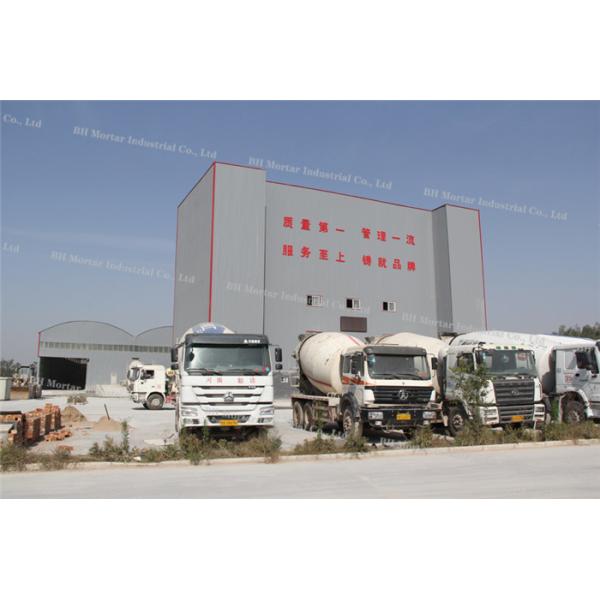

Work site:
